QXEP
Intelligent Controllers
QxControl™ Intelligent Controllers, powered by HID Mercury
QXEP-MP1501
The QXEP-MP1501 is an edge-capable intelligent controller that is expandable up to eight downstream serial input/output modules.(for a total of 16 doors/openings). The feature-rich QXEP-MP1501 provides a small footprint, cost-effective dual card reader panel for controlling a single opening. Easy installation with Power-over-Ethernet Plus (PoE+) makes the high performance, Ethernet ready QXEP-MP1501 a top choice for a single-door controller.
QXEP-MP1502
The QXEP-MP1502 supports 2-4 card readers for controlling two connected doors, which can expand to up to 64 doors/openings. It also supports keypads, biometric readers, OSDP, Wiegand, clock and data, magnetic stripe, F/2F and supervised F/2F reader technologies. With enhanced processing, memory and component continuity, the QXEP-MP1502 includes improved cybersecurity measures like secure boot, TLS 1.3, and FIPS 140-3 use of OpenSSL.
QXEP-MP2500
The QXEP-MP2500 is a powerful intelligent controller with native network support and is scalable to 64 doors/openings. Built on the Mercury platform, the intelligent controller can operate independently to perform access control functions.
QXEP-LP4502
The QXEP-LP4502, powered by HID Mercury, supports a variety of extended features including High Assurance Credential Authentication and complies with the BACnet IP communication protocol. A USB-to-Ethernet IP adapter provides a redundant host IP connection. It has direct hardware support for 2 openings and can scale to 64 access points. Built on proven HID Mercury hardware, this high-performance intelligent controller embeds elevator destination dispatch and provides integrated power management analytics to proactively detect failure before it occurs.

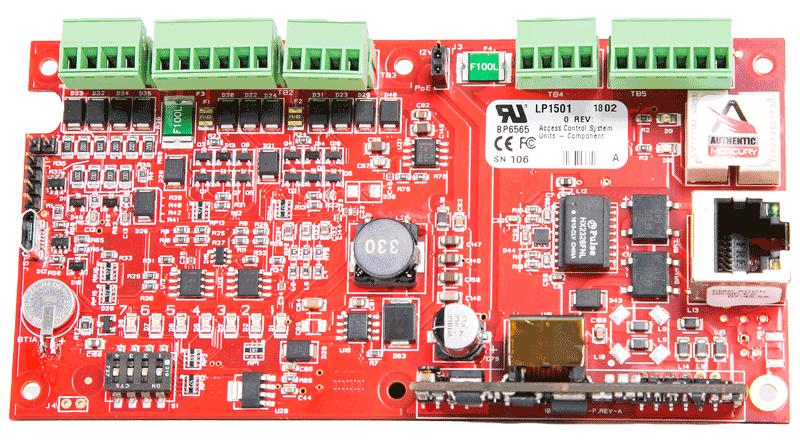

QXEP-LP1501
The QXEP-LP1501, powered by HID Mercury, is an edge-capable intelligent controller that is expandable up to 8 downstream serial input/output modules and up to 16 MR62e network ready door controllers (for a total of 17 doors/openings). The feature-rich QXEP-LP1501 provides a small footprint, cost-effective dual card reader panel for controlling a single opening. Easy installation with Power-over-Ethernet Plus (PoE+) makes the high performance, Ethernet ready LP1501 a top choice for a single-door controller

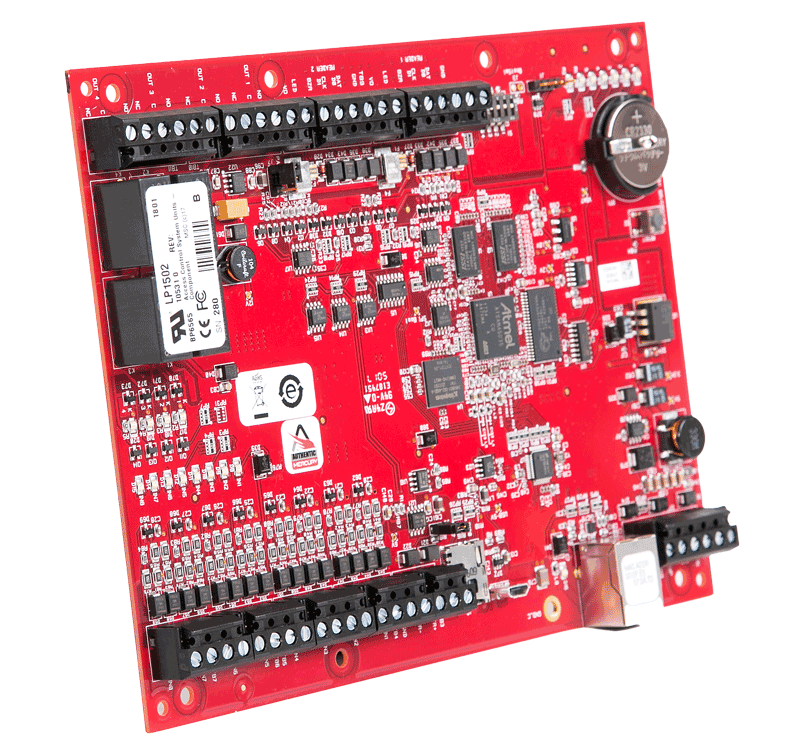

QXEP-LP1502
The QXEP-LP1502, powered by HID Mercury, is a 2-4 card reader panel for controlling two connected doors and managing up to 64 doors/openings.The intelligent controller performs access control, alarm management and scheduled operations—all in a single package. With native connectivity, the High performance QXEP-LP1502 functions independently of the host for performing numerous access control applications and supports OSDP, OSDP Secure Channel, keypads, biometric readers, Wiegand, clock and data, magnetic stripe, F/2F and supervised F/2F reader technologies.
QXEP-LP2500
The QXEP-LP2500, Powered by HID Mercury, is a powerful intelligent controller with native network support and is scalable to 64 doors/openings. This intelligent controller performs access control, alarm management and scheduled operations— all in a single package. Capable of elaborate processes and procedures without host intervention, the intelligent controller, once programmed, can function independently of the host.
QXEP-LP4502
The QXEP-LP4502, powered by HID Mercury, supports a variety of extended features including High Assurance Credential Authentication and complies with the BACnet IP communication protocol. A USB-to-Ethernet IP adapter provides a redundant host IP connection. It has direct hardware support for 2 openings and can scale to 64 access points. Built on proven HID Mercury hardware, this high-performance intelligent controller embeds elevator destination dispatch and provides integrated power management analytics to proactively detect failure before it occurs.
All Qumulex Enterprise Panels are NDAA compliant.
